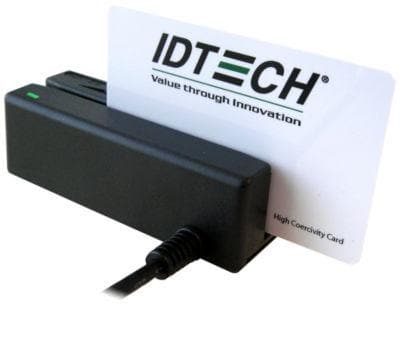

The MiniMag™II Intelligent Reader delivers exceptional performance in brilliantly designed housing. It can read up to three tracks of magnetic stripe card data regardless of swiping direction or speed which increases usability. MiniMag’s compact footprint is ideal for POS, security, loyalty and other applications where space is limited.
The uniquely designed flat surface allows for mounting in different orientations using threaded inserts or Velcro®. The cable can exit through the side or bottom which provides flexibility in mounting options.
The MiniMag II is an intelligent swipe reader with six communication interfaces: keyboard (PS/2) wedge, USB keyboard, USB-HID, RS232, RS232 Port Powered, and USB-CDC serial interfaces. JPOS and OPOS drivers are also available.
The MiniMag II is a fully programmable reader. Reader output format can be customized with user-friendly, Windows-based MagSwipe Configuration Utility. For example, after reading and validating card data, the unit can be programmed to parse the data, insert control characters, and add prefix/suffix characters while maintaining data integrity through vertical and longitudinal error checking. The reader also includes language options to ensure that the correct data is sent to the terminal.
- Interfaces: Keyboard, RS232, RS232 Port Powered, USB keyboard, USB-CDC, or USBHID
- User- Friendly configuration software, simplified data editing and configuration
- Discriminates card data formats between AAMVA and CA DMV
- Reads up to two tracks of information
- Reliable MagStripe reader for a minimum of one million card swipes
- Clear identification of successful card reads with a beeper and LED indicators
- Can be used free-standing or mounted to work with a variety of applications
- Threaded inserts for easy and flexible mounting
