How to Measure a Thermal Paper Roll

A roll that is too wide, too large in diameter, or has the wrong core size can cause feeding issues, printer jams, or prevent the printer cover from closing properly.

Fortunately, measuring a thermal paper roll only takes a few minutes.

Why Measuring Matters

Thermal paper rolls come in a variety of sizes to suit different types of equipment. A compact credit card terminal, for example, uses a much smaller roll than a full-size point-of-sale receipt printer.

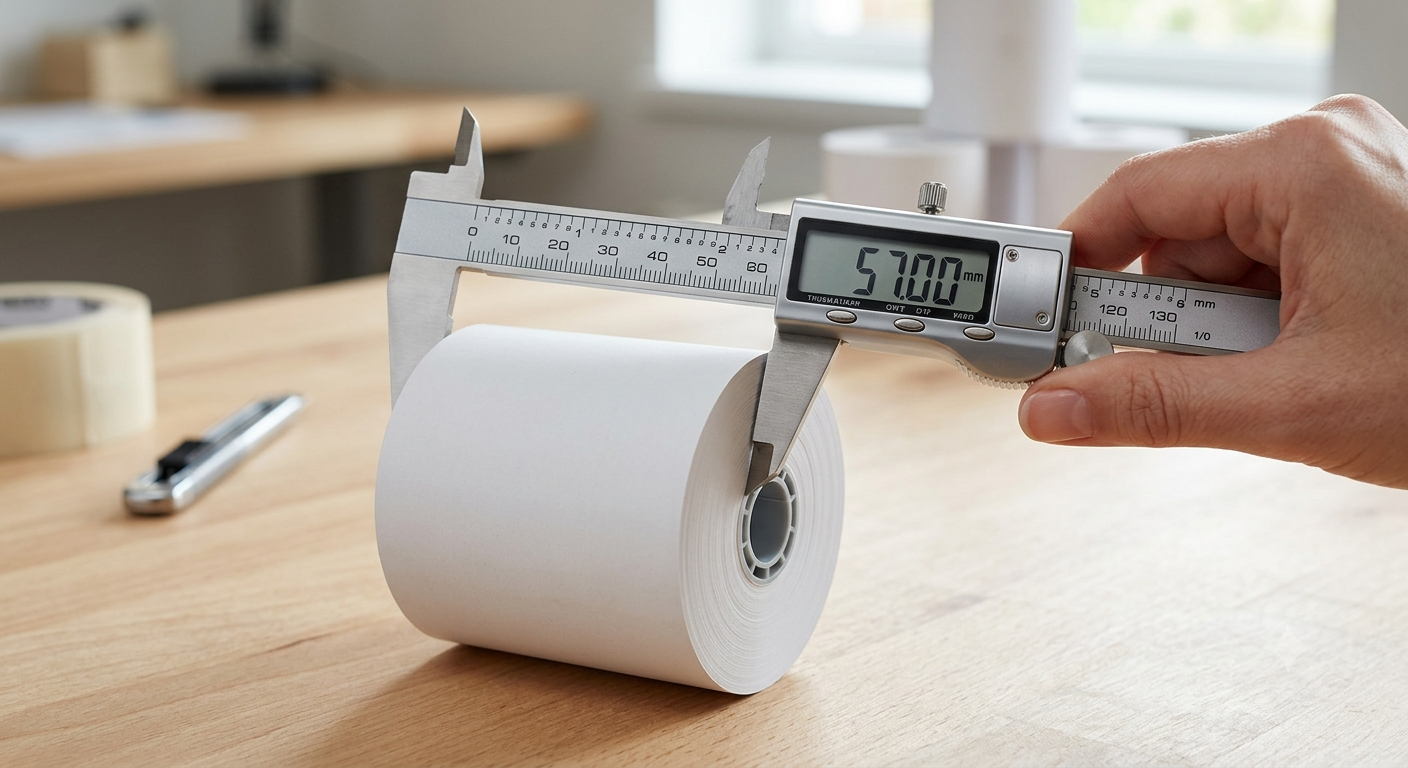

Measure the Roll Width

The width is the first and most important measurement.

Using a ruler or tape measure, measure straight across the face of the paper from one edge to the other.

Some of the most common thermal paper widths include:

• 57 mm
• 80 mm

Smaller portable payment terminals often use 57 mm rolls, while many retail receipt printers use 80 mm rolls.

Always measure the paper itself rather than the packaging.

Measure the roll diameter.

The roll diameter refers to the overall size of the roll.

Stand the roll upright and measure directly across the center from one outside edge to the opposite edge.

Common diameters include:

• 40 mm
• 50 mm
• 60 mm
• 80 mm

Check the core size.

The cardboard tube in the center of the roll is called the core.

Measure the inside diameter of the core opening with a ruler. Different printers are designed for different core sizes, so matching this measurement helps ensure the roll fits securely and feeds properly.

Although many modern receipt printers accommodate standard core sizes, it's always worth checking your equipment specifications before ordering replacement rolls.

Consider Paper Length

Paper length refers to the total amount of paper wound around the core. Unlike width and diameter, paper length isn't always easy to measure directly because it depends on the roll's diameter, the size of the core, and the thickness of the paper.

Most manufacturers include the paper length in the product description or packaging.

If you are replacing an existing roll, checking the original product specifications is usually the easiest way to match the correct length.

Confirm That It is Thermal Paper

Before ordering replacements, make sure your printer actually uses thermal paper.

Thermal paper has a heat-sensitive coating that reacts to the printer's thermal printhead. It requires no ink, toner, or ribbon.

A quick way to identify thermal paper is to gently scratch the surface with your fingernail. If a dark mark appears, the paper is thermal. If no mark appears, your printer may require bond paper and an ink ribbon instead.

Check Your Printer Manual

If you no longer have an empty roll to measure, consult your printer's documentation.

Most manufacturers list the recommended paper specifications, including:

• Paper width
• Maximum roll diameter
• Core size
• Paper type

Common Mistakes to Avoid

Many buyers focus only on paper width and overlook the other dimensions.

However, using the wrong diameter or core size can create installation problems even when the width is correct.

Another common mistake is assuming all thermal rolls are interchangeable. Different printers have different paper requirements, so it's important to confirm compatibility before placing an order.

Taking a complete set of measurements helps eliminate guesswork.

Choosing High-Quality Thermal Paper

Accurate measurements are only part of the equation. Choosing high-quality thermal paper is equally important.

Premium thermal paper produces sharper print, clearer barcodes, and longer-lasting receipts. It also helps reduce paper dust and minimizes wear on printer components, contributing to more reliable performance over time.

When paired with the correct roll size, quality thermal paper ensures smooth operation and professional-looking receipts.
